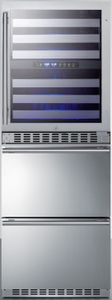

Summit® 24" Stainless Steel Wine Cooler and Refrigerator Drawers

Product Overview

Sized at just under 24" wide, the SWCDRF24 combines the 46 bottle capacity two-zone wine cellar (model ALWC532) with the 3.9 cu.ft. two-drawer refrigerator-freezer (model SPRF342D) into one complete refrigeration station. The front-breathing design allows built-in installation, while the stainless steel cabinet affords freestanding use in a durable design. Pro-style handles in brushed stainless steel complete the modern look, while the sealed back offers added space savings when placing the unit. The included six-foot Y-shaped NEMA 5-15P cord with a 3-prong right angle plug allows users to operate both units from one outlet without added depth. For user convenience, this model ships fully assembled.

The upper two-zone wine cellar has a user-reversible double-pane tempered glass door featuring a seamless stainless steel door for a modern look, while a factory-installed lock offers security as needed. Inside, automatic defrost operation ensures minimal user maintenance. It is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper-temperature zone between 41°F and 50ºF for white wine, while the lower zone is designed to store red wine between 50°F and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for convenient loading. Both zones include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.

The bottom two-drawer refrigerator-freezer features complete stainless steel construction inside and out for long-lasting durability in an easy-to-clean design. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers make it easy to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding, removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.

This unit can also be ordered to accept custom panels over the drawers and door frame (see model SWCDRF24PNR). Additional options are available with a bottom refrigerator (model SWCDAR24) or a bottom freezer (model SWCDAF24).

24" wide - Slim 24" wide fit offers full storage capacity in a compact footprint

Built-in capable - Front-breathing design allows this unit be built in for added space savings

Digital controls (both units) - Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius

LED lighting (both units) - LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of both drawer interiors for easy access

Professional handles (both units) - Solid stainless steel handles 1” in diameter afford style to any setting

Double pane tempered glass door (wine cellar) - Provides a full display of the interior, with two levels of glass for added protection

Seamless stainless steel door frame (wine cellar) - Single-piece door trim offers a more deluxe look

Two temperature zones (wine cellar) - Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

Commercial shelving design (wine cellar) - Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

Full-extension shelving (wine cellar) - Shelves move smoothly on ball-bearing glides for easier loading and unloading

Automatic defrost (wine cellar) - Reduced maintenance with auto defrost system

Factory installed lock (wine cellar) - Keyed lock for secure interior, with two keys included

Reversible door (wine cellar) - User-reversible door swing makes it easy to best accommodate your setting

Two stainless steel drawers (refrigerator-freezer) - Slide-out drawers offer 3.4 cu. ft. of interior storage

Stainless steel construction (refrigerator-freezer) - Complete stainless steel construction offers added durability in an easy-cleaning design

Drawer dividers (refrigerator-freezer) - Two adjustable dividers make it simple to organize the drawer interiors

Sliding basket (refrigerator-freezer) - Removable chrome basket included for easier storage convenience

Frost-free operation (refrigerator-freezer) - No-frost operation for minimum user maintenance

Internal fan (refrigerator-freezer) - Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Stainless steel kickplate (refrigerator-freezer) - Protects from everyday wear and tear in a durable, elegant design

Open drawer alarm (refrigerator-freezer) - Audible alarm will sound if the drawers are left ajar for over a minute

Temperature alarm (refrigerator-freezer) - High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function (refrigerator-freezer) - Unit will retain its last settings when power is restored in the event of power loss

Child lock (refrigerator-freezer) - Disables digital controls after two minutes of activity for added safety

Sabbath Mode (refrigerator-freezer) - Optional setting lets you disable the lighting and alarm for up to 48 hours

Y-cord with single 3-prong right angle plug included - Included 6 ft. cord allows users to operate both the wine cellar & refrigerator-freezer using a single plug for added convenience

Anti-tip bracket - Included and recommended for user-installation to reduce the risk of tipping

Fully finished stainless steel cabinet - Allows the unit to be used freestanding

Ships fully assembled - Unit comes fully assembled for user convenience

100% CFC Free - Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant - Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
